Compression

” Stacking forces generated during warehouse storage and transit can generate severe compressive loads. Compression tests are an essential part of the package design process. Lansmont offers a full range of Compression Test Systems to determine the performance of unit loads, individual packages, components, and materials under compressive loads. This information enables the engineer to minimize damage, costs, and liability due to stacking failure. ”

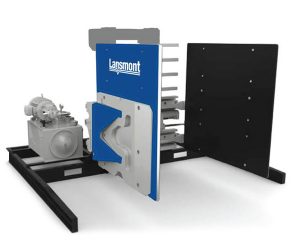

Clamping Compression Tester

Severe horizontal compressive forces occur when packaged-products are mechanically handled at different points within the supply chain. Packages can also experience extreme horizontal compressive forces in both the e-commerce and parcel environments as fast moving packaged products accumulate at various points in those supply chains.
More

Squeezer

The Squeezer is our smallest compression tester, designed to evaluate box strength and perform distribution simulation compression tests. The standard system has a platen size that is 30 in. (76 cm) square with a maximum opening of 48 in. (122 cm). Maximum force capability is 5000 lbs. (22.2 kN).
More

122-15 Compression Tester

The Model 122-15 is a servo-hydraulic compression tester designed to evaluate the compressive strength of individual shipping containers as well as larger pallets, unit loads, and large bulk containers. The standard system has a platen size that is 48 in. (122 cm) square with a maximum opening of 78 in. (198 cm). Maximum force capability is 15,000 lbs. (66.7 kN).
More

152-30 Compression Tester

The Model 152-30 is a servo-hydraulic compression tester designed to evaluate the compressive strength of individual shipping containers, pallets, unit loads, and large bulk containers. The standard system has a platen size that is 60 in. (152 cm) square with a maximum opening of 84 in. (213 cm). Maximum force capability is 30,000 lbs. (133 kN).
More

152-50 Compression Tester

The Model 152-50 is a servo-hydraulic compression tester designed to evaluate the compressive strength of individual shipping containers, pallets, unit loads, and large bulk containers. The standard system has a platen size that is 60 in. (152 cm) square with a maximum opening of 84 in. (213 cm). Maximum force capability is 50,000 lbs. (222 kN).
More

TouchTest Compression Controller

Lansmont’s TouchTest Compression (TTC) controller integrates machine control functions with data capture, analysis, and reporting features for our large format compression testers. TTC has a full range of testing capabilities including Constant Deflection Rate, Ramp to Load and Release, Stacking Simulation, and Deflection Profile compression tests.
More
